Heat exchangers for winter fishing – the best purchased and homemade models

The main enemy of a fisherman
on winter fishing is the cold. A tent will help protect you from it
. However, without additional sources of heating, the temperature in it drops rapidly. The situation is saved by a heat exchanger designed for installation in a tent.
It is good for winter fishing in a tent, but until the temperature overboard drops below -10 degrees, or the wind rises, or
drops night [/ caption]

What is a heat exchanger and how does it work

A heat exchanger is a metal structure in which various types of fuels are burned. They are equipped with large heating elements, due to which heat energy is released to the outside. All models are equipped with a combustion product removal system.
A standard set that comes with the heat exchanger [/ caption] Heat exchangers consist of several parts, which are interconnected:

1. The main unit is the burner . It burns fuel of one kind or another, due to which heat is generated.
2. Exit system . It prevents combustion residues from entering the tent.
3. Heating elements . Allows you to maintain a positive temperature in the room for longer.

On winter fishing, a heat exchanger is an indispensable thing. Thanks to him, a person can stably maintain a certain air temperature in his tent. This will allow the fisherman to warm up after going out on the ice or even comfortably spend the night in nature.

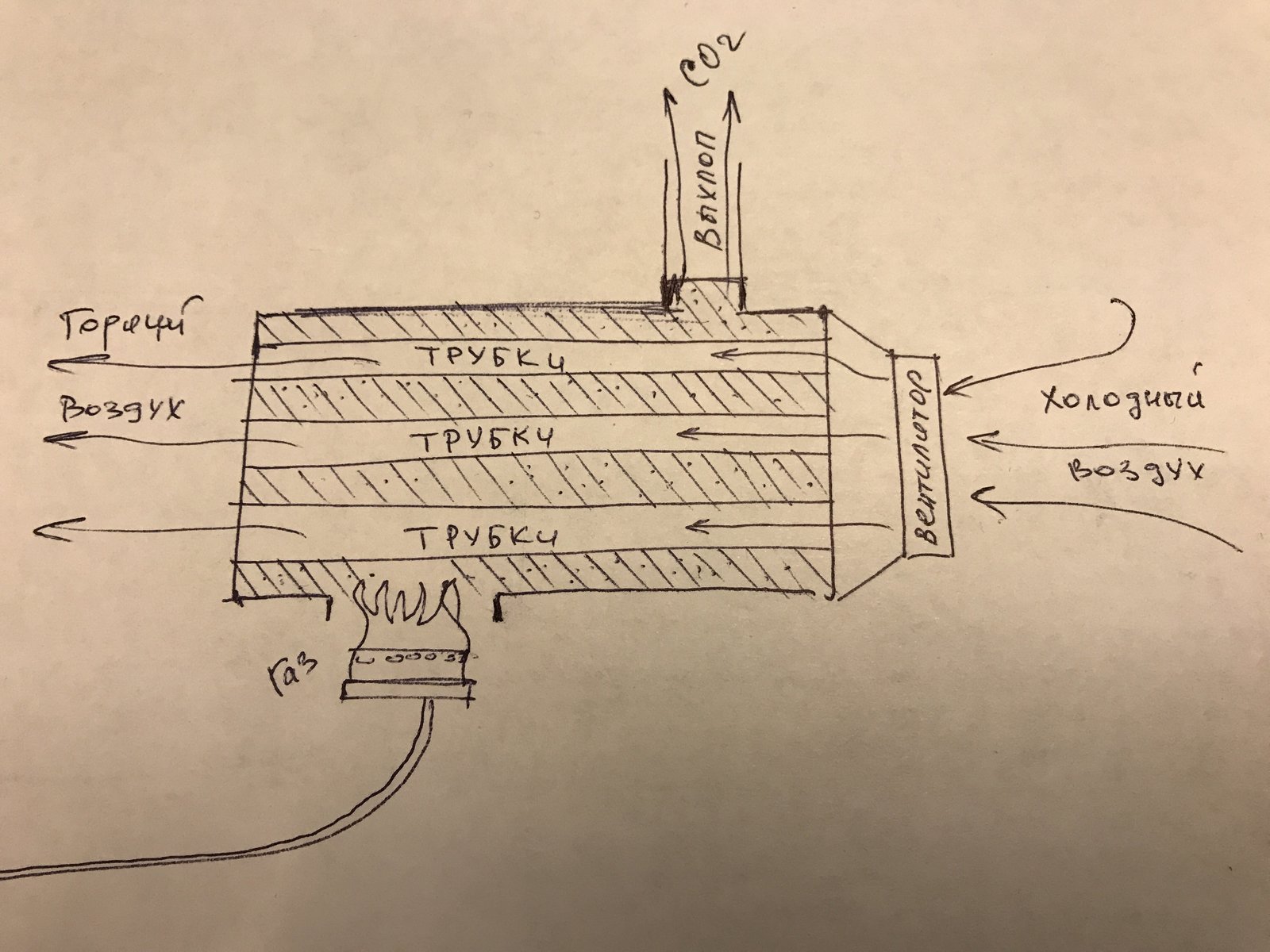

The principle of operation of a heat exchanger installed in a tent

There are various heat sources under the heat exchanger that burn fuel. Warm air rises up through special tubes, and then is evenly distributed throughout the entire inner part of the tent. Hazardous combustion products are discharged to the outside through the chimney. Some devices are additionally equipped with a fan powered by a portable battery. It allows you to quickly disperse the heat around the tent and improve the heating of its distant parts.

What types are on the market

Devices are classified according to the type of fuel they burn to generate heat. It can be:

1. Alcohol . Heat exchangers that run on alcohol are distinguished by their compactness. However, they are not able to warm the fisherman in severe frost. They are often used as an additional heating tool.
2. Solid fuel (firewood) . Heat exchangers operating on solid fuels (wood, briquettes) are the most common among anglers, because it can be found in any forest. The main disadvantage of contraction is its large weight and size.
3. Gasoline . Liquid fuel devices are compact. However, they did not become widespread due to the explosive properties of gasoline.
4. Gas . Fish use devices that operate on gas quite often. Their distinctive feature is their small size and safety of use. Gas enters the burner from the storage through a special hose. The fuel supply is regulated by a valve.

Electric heat exchanger [/ caption]

Note! There are devices on sale that operate on electricity.

Each person decides which of the options to choose based on personal preferences.

What to look for when choosing a device

The first thing a person who is going to buy a heat exchanger must decide on is the type of fuel. Each type has its own advantages and disadvantages. It is impossible to give specific advice here, it should only be noted that recently, devices operating on gas and kerosene, as well as safer electrical options, are gaining popularity among fishermen. Further, it is recommended to check the quality of the case. It should be free of rust, cracks and other flaws. The main criterion for choosing a device for many fishermen is its size. Indeed, if you plan to get to the place of fishing by car, you can buy a larger and, accordingly, a powerful heat exchanger. Another thing is when a person goes on a hike. Here, preference is given to lightweight and compact devices that can fit in a backpack.
Do not put a large heat exchanger in a backpack [/ caption]

Review of the best models

On the modern market, you can find a wide selection of heat exchanger models. Before you go shopping, you should familiarize yourself with the best ones.

Gas heat exchanger SIBTERMO ST-4.5 from the Omsk manufacturer

The body is made of aluminum alloys, which have good thermal conductivity. Covered with heat-resistant paint. He is able to heat not only the tent, but also the living quarters are not very large. The weight of the unloaded device is 7.4 kg. It operates on gas. Price RUB16,500 Sibtermo heat exchanger overview: https://youtu.be/BVSG7Z5-b2I

Dry wind

The outer casing of the Sukhovey heat exchanger is made of stainless steel. Inside there are aluminum tubes, thanks to which good heat transfer is ensured. The basic package includes a fan, the power of which can be adjusted by means of a dimmer. The branch pipe is located at the bottom of the housing. This greatly increases the efficiency of the device. The device weighs only 2.9 kg. Price RUB 9,500

Electric battery heat exchanger Desna BM

The device can operate in automatic and turbo modes. Power is supplied from a rechargeable battery or batteries. It is noted that the efficiency of this device is slightly higher than that of similar devices. It heats up the air quickly. Do not place products made of flammable materials near the device. The heat exchanger body quickly heats up to a high temperature. Price 11,000 rubles.

Bullfinch

The body of the device is made of 1.5 mm thick stainless steel. Covered with heat-resistant paint. The device is designed to operate at extremely low temperatures. Equipped with folding legs. The basic package includes a carrying container, which can also be used as a table. Price RUB4,700

Ripus

It is made of steel alloy coated with anti-corrosion protection. Its compact size makes it possible to install it even in small tents, and its low fuel consumption increases the operating time. Hazardous combustion products are quickly discharged to the outside through the chimney. Price RUB 3,150 How to choose a heat exchanger for a tent – video review: https://youtu.be/cKi8g2b_g1Y

Installing a heat exchanger in a tent – safety comes first

The heat exchanger is placed on a flat surface on the floor of the tent. It is recommended to put a sheet of metal or plywood under the bottom for greater stability of the device. The chimney is connected at one end to the device, the other is pushed into a special hole in the tent. Combustion products will be discharged through it. If this is not done, people in the interior can be poisoned by carbon monoxide. Further, fuel and / or current sources are connected to the device. The heat exchanger is then ready for operation. All that remains is to ignite the fuel or turn on the power.

Safety

There must be no flammable objects near the unit. On models that operate on petrol and gas, it is recommended to periodically check the condition of the cylinder for fuel leaks. You should also pay attention to the tightness of the chimney. If the angler notices that the heat exchanger housing is hot, the device should be disconnected immediately. Otherwise, an explosion may occur. Do not leave the device unattended for a long time. Even if there are no visual signs of malfunction, the operation of the device should be checked thoroughly periodically. This should not be neglected. It’s about human life.

Important! Do not use the torch as a cigarette lighter.

How to upgrade a purchased heat exchanger

On some models of heat exchangers, users sometimes have to go to the revision of factory equipment. Behind the coolers, craftsmen place small grilles to direct the air flow, and also install fan regulators. Also, some fishermen prefer to install additional valves on the burners to minimize the access of carbon monoxide to the tent. It is often necessary to lengthen the chimney so that it can be inserted into the corresponding opening.

A common refinement is the installation of an additional stand, which increases the stability of the device.

How to make a heat exchanger for a tent with your own hands – drawings and video instructions

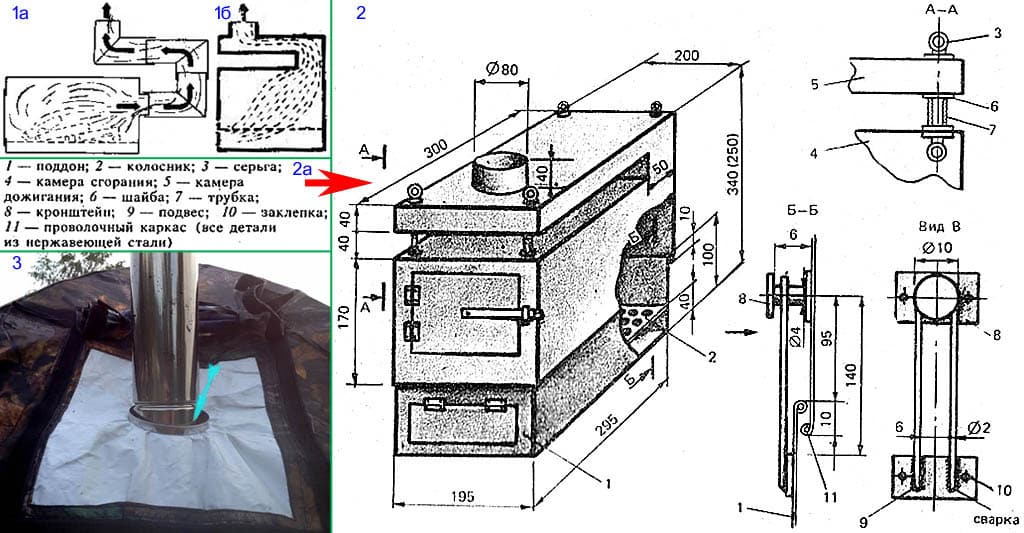

Most anglers prefer to use a home-made heat exchanger instead of a store. To create the simplest option, you will need several sheets of stainless steel. The body can be made composite or foldable. After collecting the outer walls according to the drawing, which is freely available on the Internet, you should proceed to collecting the pipe. Drawings:

Important! The cut-out for the pipe must clearly correspond to the dimensions of the burner.

Next, you need to assemble the components of the future heat exchanger into a single whole. Many anglers use a car heater radiator as a heating element. It is inserted into the inside of the burner and covered with a sheet of metal that prevents direct contact with the flame. A similar device from an old computer can be used as a fan. It is located on the rear wall of the unit, not far from the heating element. After connecting all the parts, it remains only to attach the legs to the lower part. The result is the simplest solid fuel heat exchanger. How to make a heat exchanger for a winter tent with your own hands – video instruction: https://youtu.be/uAlD3h-VUc0

Repair of equipment

During operation, various parts of the unit may fail. They should be repaired in a timely manner. Chimney clogging is a common problem. You can solve it with an ordinary brush. During transportation and use, the case may loosen slightly. This is fraught with the failure of the apparatus. It is recommended to periodically broach it. The condition of the connecting hoses on the cylinder should be monitored. If you suspect a leak, it should be replaced immediately. The heat exchanger is useful for those fishermen who like to go fishing in the winter. It allows you to maintain a comfortable air temperature in the tent for a long period of time. To purchase the unit, a person can use the store options or assemble it with their own hands.
